Thread: Woodworking misc (doll house build inside)

post 1643975153 07-31-2021, 01:51 AM
-
#1
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895

Woodworking misc (doll house build inside)

I have had a request to show more of my woodworking so here is a dolls house I made.

TLDR: here is the finished product:

Spoiler!

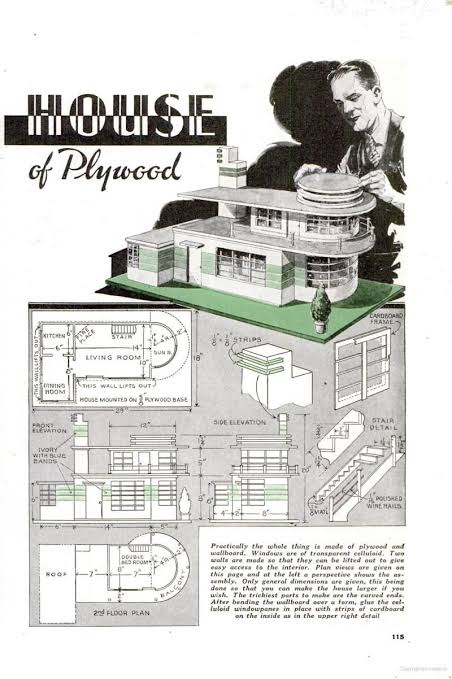

I followed a 1930's design, with a few tweaks (mistakes) from Popular Mechanics:



I always have alot of offcuts left over from other projects so the base is 20mm flooring ply and the rest is 12mm.
The circles were cut on the scroll saw and cleaned up with the disc sander.

Floor plan taking shape



Top floor and ceiling



For the windows I used 5 mm acrylic sheet. The frame was made by ripping the 'groove' of some 10mm tounge and groove paneling, and it all pushes together snuggly



With the walls and floor cut out it's time to prime everything.



Then nail/glue the wall sections and paint the interior.



Whenever I work on something in the garage the little bros are not far behind



With the floor and permanent walls in place it's time to lay the flooring.

The kitchen dining room has Rimu hard wood flooring. This was ripped down from an old door jam out of a demolition house, the house was over 100 years old. I could buy Rimu timber milled today, but the grain and character just can't compare to the old heartwood from a 100 yo+ tree. Plus this was free.



In the grand room I wanted the black and white tiles to look sharp and clean - sharper than I could paint with a brush.

I painted 2 x 3M lengths of 30x10 pine moulding, one white and one black, then cut them into squares and glued them on individually - this was alot more work than painting but I was happy with the result!



Felt carpet flooring laid in the upstairs bedroom, and exterior painting well on the way its time for the curved windows. I used polycarbonate sheet for this, it was very tricky.



Windows done!



View of the inside with the front door wall on.



View inside with some furniture



Kitchen with furniture




AMA I guess.
Damn
post 1643975263 07-31-2021, 01:55 AM
-
#2
  1. wooosh3
  2. Registered User
  1. wooosh3
  2. Registered User
  3. Join Date: Sep 2014
  4. Location: Melbourne, Victoria, Australia
  5. Age: 31
  6. Posts: 9,038
  7. Rep Power: 30418
das it mane, you do this for fun or as a job? i also heard the price of lumber has been crazy high lately
post 1643975353 07-31-2021, 02:00 AM
-
#3
  1. blissful88
  2. Somebody's Fox
  1. blissful88
  2. Somebody's Fox
  3. Join Date: Jan 2020
  4. Posts: 28,124
  5. Rep Power: 262372
Holy chit that's cool


So modern yet so retro design
*Tolerance is the lube that slides the dildo of dysfunction into the ass of civilized society*

*We didn't deserve snailsrus*

As always: not medical advice but medical opinion crew
post 1643975563 07-31-2021, 02:11 AM
-
#4
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By wooosh3⏩
das it mane, you do this for fun or as a job? i also heard the price of lumber has been crazy high lately
Just for fun. This was a christmas present for some family friends of ours. I have 2 boys and they have 2 girls, it's fun to make girls toys for once. I'm used to everything army or fire service and they are into barbies and mypets (?) I don't even know lol.

Lumber price has been high. I use as much recycled timber as I can get.
Originally Posted By blissful88⏩
Holy chit that's cool


So modern yet so retro design
Thanks brah
Damn
post 1643975723 07-31-2021, 02:21 AM
-
#5
  1. gwg77
  1. gwg77
  3. Join Date: Oct 2017
  4. Location: United States
  5. Posts: 20,525
  6. Subscribers: 19
  7. Rep Power: 1099683
Very cool, Jandels. Love the colors you chose and the detail on the flooring. Hope the girls are happy with it. Reps on recharge.
post 1643976003 07-31-2021, 02:32 AM
-
#6
  1. Bosko
  2. Food Porn Terrorist
  1. Bosko
  2. Food Porn Terrorist
  3. Join Date: Mar 2005
  4. Posts: 22,803
  5. Rep Power: 797751
pics of the toilet?
Retired...no smartphone....no neighbors......just holes...
post 1643976063 07-31-2021, 02:35 AM
-
#7
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By gwg77⏩
Very cool, Jandels. Love the colors you chose and the detail on the flooring. Hope the girls are happy with it. Reps on recharge.
Thanks brah, I wanted to keep the colours simple and the blue and pink go well together.
Originally Posted By Bosko⏩
pics of the toilet?
Lolol no toilet Boss, my bad.
Damn
post 1643976083 07-31-2021, 02:38 AM
-
#8
  1. BigNik78
  2. Five Star Man
  1. BigNik78
  2. Five Star Man
  3. Join Date: May 2015
  4. Location: Arizona
  5. Posts: 19,913
  6. Subscribers: 3
  7. Rep Power: 373758
Very cool! Reminds me of when I used to play barbies with my cousins and their big barbie house and I'd always make my barbie a stripper whore.
Ultra-Low Test Crew
MAGA
post 1643976153 07-31-2021, 02:42 AM
-
#9
  1. Autumnal
  2. Registered User
  1. Autumnal
  2. Registered User
  3. Join Date: Nov 2016
  4. Age: 34
  5. Posts: 5,290
  6. Rep Power: 37473
Would play dolls with/10. No homo
post 1643976203 07-31-2021, 02:44 AM
-
#10
  1. Bosko
  2. Food Porn Terrorist
  1. Bosko
  2. Food Porn Terrorist
  3. Join Date: Mar 2005
  4. Posts: 22,803
  5. Rep Power: 797751
you could make some killer birdhouses
Retired...no smartphone....no neighbors......just holes...
post 1643976243 07-31-2021, 02:52 AM
-
#11
  1. pyrogen
  2. Registered User
  1. pyrogen
  2. Registered User
  3. Join Date: Jan 2010
  4. Location: Australia
  5. Posts: 5,405
  6. Rep Power: 85514
BRUHH mirin' woodwork skills srs.

Do you get your boys to help out as a bonding experience? Probs wouldn't understand now but I'm sure they'd appreciate the time spent together as they grow up, not to mention picking up some handy skills.

Would rep with beers IRL.
Pumpkin courtesy of BRANDERSS (https://forum.obnoxiousbrutes.com/showthread.php?t=180764903);
addendum courtesy of buttInspector (https://forum.obnoxiousbrutes.com/showthread.php?t=183054703).

P.S. Jandels needs a new sig m8s (Byzantine75 is a cheeky little bugger. srs.)
post 1643976303 07-31-2021, 02:57 AM
-
#12
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By BigNik78⏩
Very cool! Reminds me of when I used to play barbies with my cousins and their big barbie house and I'd always make my barbie a stripper whore.
Lol good times. Now they make barbies that actually do look like stripper whores.
Originally Posted By Autumnal⏩
Would play dolls with/10. No homo
Thats us then.
Originally Posted By Bosko⏩
you could make some killer birdhouses
I helped my son make this bird house for a school project. Again we used offcuts, the ply is curved like that because my mate had them cut to the door pattern of one of his classic cars.. I dunno why, but I took it when it was offered!

Damn
post 1643976403 07-31-2021, 03:07 AM
-
#13
  1. TokenV
  2. I ❤ TECHNO
  1. TokenV
  2. I ❤ TECHNO
  3. Join Date: Feb 2012
  4. Location: Belgium
  5. Posts: 41,404
  6. Rep Power: 442514
why does the front door open outwards?
++
post 1643976483 07-31-2021, 03:15 AM
-
#14
  1. multiplemiggs
  2. P E R V E R T
  1. multiplemiggs
  2. P E R V E R T
  3. Join Date: Nov 2019
  4. Posts: 57,385
  5. Rep Power: 568972
Very cool brah. I like the art deco design.

SPOT SOLD TO FROGTECH - 100% NATURAL GENETIC FROG FIBRES

see Krackerjacked's sig

never underestimate the slootiness of a sloot
-DrugsToGetBig

ratchet girls love the ebt flex
-havoc00
post 1643976503 07-31-2021, 03:16 AM
-
#15
  1. Kiop
  2. ™gif me so i can gif you©
  1. Kiop
  2. ™gif me so i can gif you©
  3. Join Date: Nov 2015
  4. Posts: 55,724
  5. Rep Power: 222392
your model
should be less WHITE
UKNOWWATAMSAYIN?
post 1643976573 07-31-2021, 03:18 AM
-
#16
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By pyrogen⏩
BRUHH mirin' woodwork skills srs.

Do you get your boys to help out as a bonding experience? Probs wouldn't understand now but I'm sure they'd appreciate the time spent together as they grow up, not to mention picking up some handy skills.

Would rep with beers IRL.
Thanks brah. To be honest its the same with me - I don't really appreciate the time together either, until I sit down and think about it. I couldn't keep them away from the workshop if I tried, but you can imagine it's hard to concentrate with the distractions.

It's pretty special, and I wouldn't change it for the world.
Originally Posted By TokenV⏩
why does the front door open outwards?
Zombie Ken can't kick the door in if it opens outward. Fake it till you make it
Damn
post 1643976803 07-31-2021, 03:27 AM
-
#17
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By multiplemiggs⏩
Very cool brah. I like the art deco design.

LMAO! Too much bro
Originally Posted By Kiop⏩
your model
should be less WHITE
UKNOWWATAMSAYIN?
I knowwhatyousayin man. The white paint was left over from painting my living room. I'll try harder next time
Damn
post 1643976843 07-31-2021, 03:30 AM
-
#18
  1. multiplemiggs
  2. P E R V E R T
  1. multiplemiggs
  2. P E R V E R T
  3. Join Date: Nov 2019
  4. Posts: 57,385
  5. Rep Power: 568972
Originally Posted By Jandels⏩
LMAO! Too much bro



I knowwhatyousayin man. The white paint was left over from painting my living room. I'll try harder next time
The colors and the design remind me of a house in GTA Vice City.
SPOT SOLD TO FROGTECH - 100% NATURAL GENETIC FROG FIBRES

see Krackerjacked's sig

never underestimate the slootiness of a sloot
-DrugsToGetBig

ratchet girls love the ebt flex
-havoc00
post 1643977113 07-31-2021, 03:46 AM
-
#19
  1. MrBourbon
  2. Some idiot
  1. MrBourbon
  2. Some idiot
  3. Join Date: Aug 2014
  4. Posts: 29,843
  5. Rep Power: 577365
Very cool brah! I have old done a few woodworking projects but it's so satisfying. I made our daughters bed and every time my wife has a new friend over and gives them the tour I ALWAYS hear her telling them that I made it, das fukken it.

Do you do this for money or just a hobby/skill?
Smooth Seas don't make Strong Sailors. Keep your head up.

MrWhiskey24 for jolly cooperation (PS)
post 1643977223 07-31-2021, 03:57 AM
-
#20
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By MrBourbon⏩
Very cool brah! I have old done a few woodworking projects but it's so satisfying. I made our daughters bed and every time my wife has a new friend over and gives them the tour I ALWAYS hear her telling them that I made it, das fukken it.

Do you do this for money or just a hobby/skill?
Dasit mane! Wood working can be for everyone, just start off small with easy projects and work your way up. Making something functional is very satisfying.

It's just a hobby for me. If I did it as a job I probably wouldn't enjoy it.
Damn
post 1643977413 07-31-2021, 04:13 AM
-
#21
  1. nrowles
  2. Registered User
  1. nrowles
  2. Registered User
  3. Join Date: Jun 2012
  4. Location: Pennsylvania, United States
  5. Age: 43
  6. Posts: 2,857
  7. Rep Power: 23063
Nice...years ago I started getting into woodworking and buying the tools but too many hobbies and that one faded.

How many hours you have invested in this project?
post 1643977493 07-31-2021, 04:17 AM
-
#22
  1. foXs
  2. ♞♞♞♞♞♞♞
  1. foXs
  2. ♞♞♞♞♞♞♞
  3. Join Date: Nov 2009
  4. Age: 39
  5. Posts: 7,709
  6. Rep Power: 38384
Starting my Carpentry apprenticeship in about a week and a half, looking forward to it
♞♞♞♞♞♞♞♞♞♞♞♞♞♞♞♞

Chance Favors the Prepared Mind
post 1643977523 07-31-2021, 04:19 AM
-
#23
  1. potbellymadar
  2. Registered User
  1. potbellymadar
  2. Registered User
  3. Join Date: Aug 2011
  4. Location: United States
  5. Posts: 12,217
  6. Rep Power: 74024
Nice set up
Dachshund Crew 4 life
Austrian
Poverty Chair
Impeach RichStrong
post 1643977763 07-31-2021, 04:30 AM
-
#24
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By nrowles⏩
Nice...years ago I started getting into woodworking and buying the tools but too many hobbies and that one faded.

How many hours you have invested in this project?
Yeah, fair enough man. I'm luck enough to have the space to store all the tools and materials long term.

The hours add up fast. At a guess 20-30 hours spent in the shop, maybe more.
Originally Posted By foXs⏩
Starting my Carpentry apprenticeship in about a week and a half, looking forward to it
Awesome brah! I wish you well with that.
Originally Posted By potbellymadar⏩
Nice set up
Thanks m8, I have all the tools I need for basic stuff like this.. but theres always more I want
Damn
post 1643977883 07-31-2021, 04:39 AM
-
#25
  1. Kormo
  1. Kormo
  3. Join Date: Sep 2016
  4. Posts: 23,492
  5. Rep Power: 171110
post 1643978313 07-31-2021, 04:59 AM
-
#26
  1. swoledoc13
  2. Banned
  1. swoledoc13
  2. Banned
  3. Join Date: Oct 2015
  4. Age: 50
  5. Posts: 1,102
  6. Rep Power: 0
Whenever I consider purchasing something or a new hobby, I ask myself, “Will this get me laid?” As a grown man playing with dolls, I’m gonna say no.

Good work man.LOL. Looks like a lot of fun.
post 1643978453 07-31-2021, 05:05 AM
-
#27
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By Kormo⏩
A house for ANTS?
Originally Posted By swoledoc13⏩
Whenever I consider purchasing something or a new hobby, I ask myself, “Will this get me laid?” As a grown man playing with dolls, I’m gonna say no.

Good work man.LOL. Looks like a lot of fun.
Getting laid is nice bruh, but don't base all your hobbies around women. Do some things that you want to do, you deserve it.
Damn
post 1643978763 07-31-2021, 05:17 AM
-
#28
  1. chaunce54
  2. Platinum User
  1. chaunce54
  2. Platinum User
  3. Join Date: Feb 2010
  4. Age: 50
  5. Posts: 32,523
  6. Rep Power: 202517
That's like $3000 worth of plywood!!

Good job though, looks great!
^^Former 300+lb Crew^^

WWPB2D

Nothing worthwile is ever easy.

The beatings will continue until morale improves.
post 1643996113 07-31-2021, 12:11 PM
-
#29
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,933
  5. Subscribers: 2
  6. Rep Power: 112895
Originally Posted By chaunce54⏩
That's like $3000 worth of plywood!!

Good job though, looks great!
Hehe yeah, you can't buy one of these at Walmart though.
Damn
post 1643997213 07-31-2021, 12:30 PM
-
#30
  1. gwg77
  1. gwg77
  3. Join Date: Oct 2017
  4. Location: United States
  5. Posts: 20,525
  6. Subscribers: 19
  7. Rep Power: 1099683
Oh chit Jandels, I didn't even notice some of the small furniture you made last night, like the couches, table, bed bookshelves, etc.

I used to live a few blocks from this dollhouse store, and would would walk the dog past it every now and then. Had some really cool dollhouses. But anyways, check out their etsy store and see how much they charge for all the little furniture pieces and what not. Some of them get really expensive real quickly.

https://www.tinydollhousenewyorkcity.com/

Etsy store:

https://www.etsy.com/shop/TinyDollHouseNYC
  1. Page 1 of 2
  2. 1
  3. 2
  5. Last
Quick Navigation Top Misc
Bookmarks
Digg.com
Digg
del.icio.us
del.icio.us
Stumbleupon.com
StumbleUpon
Google.com
Google
Facebook.com
Facebook
Posting Permissions
  1. You may not post new threads
  2. You may not post replies
  3. You may not post attachments
  4. You may not edit your posts
