Thread: I got a new tool for the workshop (wood lathe)

post 1676946103 02-10-2023, 05:22 PM
-
#1
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397

I got a new tool for the workshop (wood lathe)

Anyone have experience on these things?



It's not working atm. The motor spins but it needs a belt. I have a strip of rubber that came with it, I think it needs to be glued together? - thats not something I've done before.

I will update this thread if I manage to turn anything lol
Damn
post 1676946243 02-10-2023, 05:26 PM
-
#2
  1. pyrogen
  2. Registered User
  1. pyrogen
  2. Registered User
  3. Join Date: Jan 2010
  4. Location: Australia
  5. Posts: 5,405
  6. Rep Power: 85514
Fuark, mirin'! That looks oldskool.

can I come over tomorrow and turn some wood m8? I'll make you a honey dipper srs.
Pumpkin courtesy of BRANDERSS (https://forum.obnoxiousbrutes.com/showthread.php?t=180764903);
addendum courtesy of buttInspector (https://forum.obnoxiousbrutes.com/showthread.php?t=183054703).

P.S. Jandels needs a new sig m8s (Byzantine75 is a cheeky little bugger. srs.)
post 1676947653 02-10-2023, 05:55 PM
-
#3
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397
Originally Posted By pyrogen⏩
Fuark, mirin'! That looks oldskool.

can I come over tomorrow and turn some wood m8? I'll make you a honey dipper srs.
Lol maybe not tomorrow, theres a cyclone comming for me srs

I found the old belt inside, I'll find a product that will glue it back together. Have you ever done something like that m8?



In the meantime, I'll replace the old screws with machine screws as some of them are missing

Damn
post 1676948133 02-10-2023, 06:04 PM
-
#4
  1. pyrogen
  2. Registered User
  1. pyrogen
  2. Registered User
  3. Join Date: Jan 2010
  4. Location: Australia
  5. Posts: 5,405
  6. Rep Power: 85514
stay safe Jandels brah

I reckon your best bet is to track down a new belt with the correct circumference to replace the snapped one

Might be a hazard if you glue the old one together as the belt integrity won't be the same.
Pumpkin courtesy of BRANDERSS (https://forum.obnoxiousbrutes.com/showthread.php?t=180764903);
addendum courtesy of buttInspector (https://forum.obnoxiousbrutes.com/showthread.php?t=183054703).

P.S. Jandels needs a new sig m8s (Byzantine75 is a cheeky little bugger. srs.)
post 1676950523 02-10-2023, 06:47 PM
-
#5
  1. Paul Kreul
  2. Registered User
  1. Paul Kreul
  2. Registered User
  3. Join Date: Apr 2006
  4. Location: United States
  5. Posts: 33,385
  6. Rep Power: 316746
post pics of your work Jandels..
post 1676951193 02-10-2023, 06:58 PM
-
#6
  1. ZeGermans94
  2. Banned
  1. ZeGermans94
  2. Banned
  3. Join Date: Aug 2022
  4. Posts: 5,378
  5. Rep Power: 0
Sup Jandels just wanted to say what's up brother.

Hope all is well in Kiwi Land my tune for the night so far.


post 1676951323 02-10-2023, 07:00 PM
-
#7
  1. Destor
  2. Registered User
  1. Destor
  2. Registered User
  3. Join Date: Apr 2012
  4. Location: Alberta, Canada
  5. Age: 41
  6. Posts: 43,481
  7. Rep Power: 254906
Wood/10
post 1676951713 02-10-2023, 07:06 PM
-
#8
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397
Originally Posted By pyrogen⏩
stay safe Jandels brah

I reckon your best bet is to track down a new belt with the correct circumference to replace the snapped one

Might be a hazard if you glue the old one together as the belt integrity won't be the same.
You're so smart. I should've been more clear; I wasn't planning on glueing the old belt back together (pic below) I have a strip of belt material that came with the machine which needs to be glued.
Originally Posted By gwg77⏩
Sweet Jandels!

I'd do what pyrogen suggests and measure the belt and see if you can a new one in that size.

Keep us posted on the restoration!
Yeah, I'm stoked with this! Regarding the belt - I think it's a "cut it to the size you want, to match the speed you want" kind of deal. I'm going to cut the new strip down to the same size as the old one, then glue it together.

Here's where the old one came apart (at the join by the look of it).



Originally Posted By Paul
post pics of your work Jandels..
Yeah, man for sure. I will need to fix the belt and get some chisels then I'm good to go. Have you seen what they can do with resin? Pretty incredible



I will be happy if I can make a baseball bat lol
Originally Posted By ZeGermans94⏩
Sup Jandels just wanted to say what's up brother.

Hope all is well in Kiwi Land my tune for the night so far.


Hey whats up bro! Devin should get more credit than he does. Based
Originally Posted By Destor⏩
Wood/10
Me too
Damn
post 1676953553 02-10-2023, 07:39 PM
-
#9
  1. pyrogen
  2. Registered User
  1. pyrogen
  2. Registered User
  3. Join Date: Jan 2010
  4. Location: Australia
  5. Posts: 5,405
  6. Rep Power: 85514
Originally Posted By Jandels⏩
I have a strip of belt material that came with the machine which needs to be glued.
Lmao, my bad bruv.

The ole cut to size and glue together is a solid plan. I have nfi what the best rubber adhesive is.

GL m8
Pumpkin courtesy of BRANDERSS (https://forum.obnoxiousbrutes.com/showthread.php?t=180764903);
addendum courtesy of buttInspector (https://forum.obnoxiousbrutes.com/showthread.php?t=183054703).

P.S. Jandels needs a new sig m8s (Byzantine75 is a cheeky little bugger. srs.)
post 1676954843 02-10-2023, 08:00 PM
-
#10
  1. TallTigerTwo
  2. Registered User
  1. TallTigerTwo
  2. Registered User
  3. Join Date: Oct 2020
  4. Age: 56
  5. Posts: 7,418
  6. Rep Power: 73525
I always wanted one of these but I don’t have the room for something like this. Hopefully, if I get a shop in the future I’ll be able to invest in some stuff like this. Have fun and be safe OP!
post 1676955853 02-10-2023, 08:18 PM
-
#11
  1. Paul Kreul
  2. Registered User
  1. Paul Kreul
  2. Registered User
  3. Join Date: Apr 2006
  4. Location: United States
  5. Posts: 33,385
  6. Rep Power: 316746
Originally Posted By Jandels⏩
Yeah, man for sure. I will need to fix the belt and get some chisels then I'm good to go. Have you seen what they can do with resin? Pretty incredible



I will be happy if I can make a baseball bat lol
damn, that's pretty impressive, wood pay you to make a piece for me. srs.

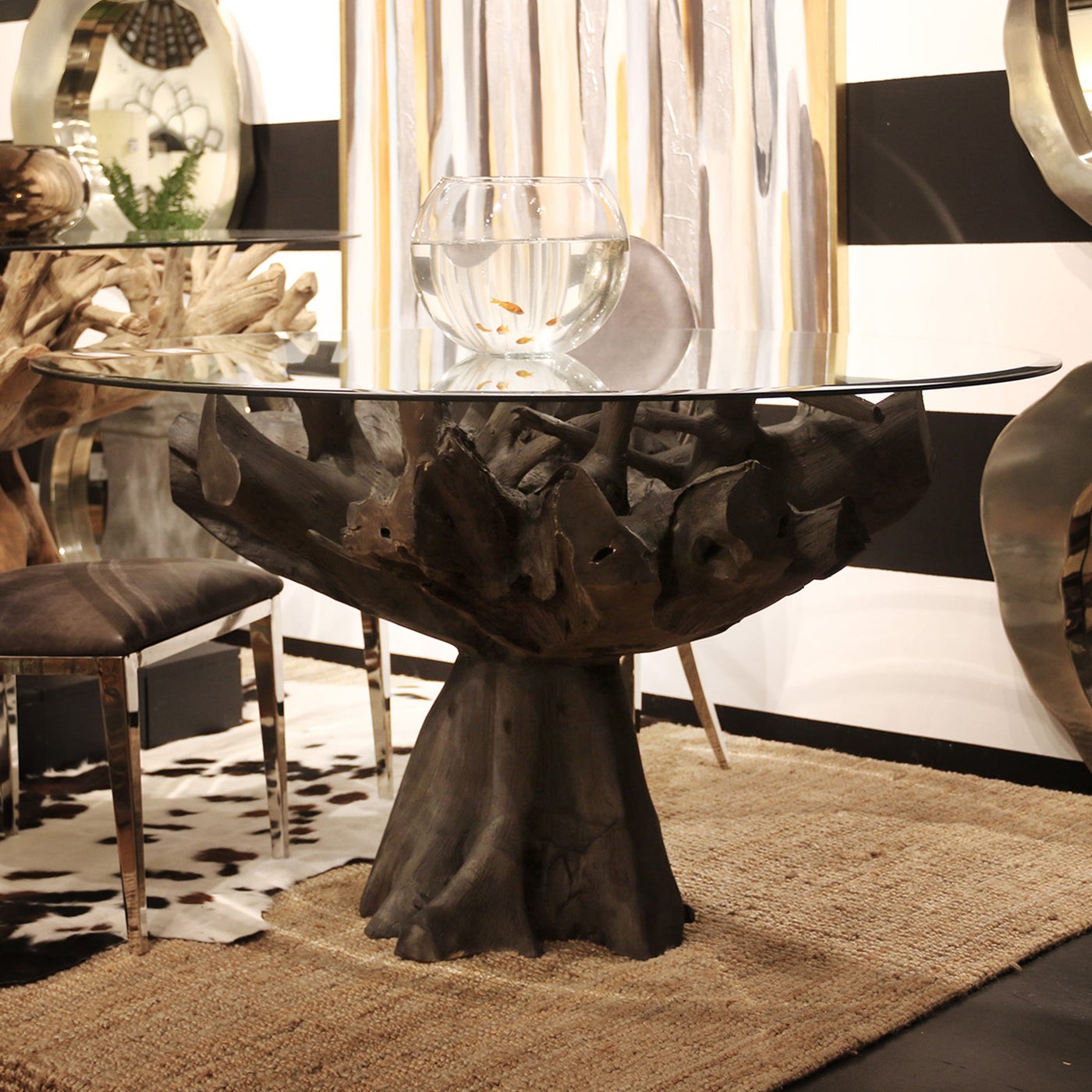

I have a large glass dinning room table top that my mom gave us and has some great etch work done within it, unfortunately, I do not have a base..was thinking of something like this...



or..






but everything I have found is too small for the glass piece I have
post 1676959933 02-10-2023, 09:26 PM
-
#12
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397
Originally Posted By TallTigerTwo⏩
I always wanted one of these but I don’t have the room for something like this.  Hopefully, if I get a shop in the future I’ll be able to invest in some stuff like this. Have fun and be safe OP!
This is just a bench top model thankfully, I couldn't fit a free standing unit.

Whenever I get a new piece of equipment I think to myself "willthisbe the one I lose my fingers too?" Lol, I still have all 10 but stay tuned to find out.
Originally Posted By Paul
damn, that's pretty impressive, wood pay you to make a piece for me. srs.
I have a large glass dinning room table top that my mom gave us and has some great etch work done within it, unfortunately, I do not have a base..was thinking of something like this...



or..






but everything I have found is too small for the glass piece I have
Fuark, I would love to send you something. Those are a bit above my skill level, how about a key chain?
Damn
post 1676961933 02-10-2023, 10:03 PM
-
#13
  1. blazenbb
  2. Registered User
  1. blazenbb
  2. Registered User
  3. Join Date: Nov 2019
  4. Age: 56
  5. Posts: 6,874
  6. Rep Power: 49941
Only experience I have is watching a video of a guy getting obliterated by a lathe.
post 1676962173 02-10-2023, 10:08 PM
-
#14
  1. cobhc
  2. Structural Engineer Brah
  1. cobhc
  2. Structural Engineer Brah
  3. Join Date: Dec 2010
  4. Location: Brooklyn, New York, United States
  5. Posts: 44,106
  6. Rep Power: 281429
Hi Jandels
NEW YORK FOOTBALL GIANTS
RED BULL RACING
post 1676962363 02-10-2023, 10:12 PM
-
#15
  1. desslok
  2. Super Spreader
  1. desslok
  2. Super Spreader
  3. Join Date: Apr 2010
  4. Posts: 42,315
  5. Rep Power: 243654
I don’t think the belt is cut to size. Usually the stepped pulleys have a few sizes and they are inverted. I can see the top one, i am guessing the bottom one goes smaller from out to in, but can’t see from pic. That lets the same belt fit on each step for different speeds. Usually there is a chart on the door of speeds. You usually rough on slower speed and then finish on higher speeds.

The expensive part is the tools, chisels and gouges etc, then you need a way to sharpen them and then additional chucks if you want. If I were you I would check CL, offerup, FB market etc for old lathe turning tools. You can usually grab an old set of steel tools for $50-60, whereas newer HSS tools can be way more than that each. There are also some with carbide cutters.

I mainly make bottle stoppers as gifts on mine.
2 time survivor of The Great Misc Outages of 2022

Survivor of PHP/API Outage of Feb 2023
post 1676964703 02-10-2023, 10:53 PM
-
#16
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397
Originally Posted By blazenbb⏩
Only experience I have is watching a video of a guy getting obliterated by a lathe.
Fuark, I stay away from those videos man. Sht gets real, real quick.
Originally Posted By cobhc⏩
Hi Jandels
My bro, hope you are well.
Originally Posted By desslok⏩
I don’t think the belt is cut to size. Usually the stepped pulleys have a few sizes and they are inverted. I can see the top one, i am guessing the bottom one goes smaller from out to in, but can’t see from pic. That lets the same belt fit on each step for different speeds. Usually there is a chart on the door of speeds. You usually rough on slower speed and then finish on higher speeds.

The expensive part is the tools, chisels and gouges etc, then you need a way to sharpen them and then additional chucks if you want. If I were you I would check CL, offerup, FB market etc for old lathe turning tools. You can usually grab an old set of steel tools for $50-60, whereas newer HSS tools can be way more than that each. There are also some with carbide cutters.

I mainly make bottle stoppers as gifts on mine.
Awesome insight, thanks man! Great to hear from someone with experience.

It has 4 spindle speeds -



That steel lever sticking out the front moves the motor closer/further away to adjust the belt. It doesn't lock in anyway so it's pretty low tech.

I would love to see some pics of your work or your set up
Damn
post 1676965863 02-10-2023, 11:24 PM
-
#17
  1. desslok
  2. Super Spreader
  1. desslok
  2. Super Spreader
  3. Join Date: Apr 2010
  4. Posts: 42,315
  5. Rep Power: 243654
Originally Posted By Jandels⏩
Awesome insight, thanks man! Great to hear from someone with experience.

It has 4 spindle speeds -



That steel lever sticking out the front moves the motor closer/further away to adjust the belt. It doesn't lock in anyway so it's pretty low tech.

I would love to see some pics of your work or your set up
Yeah that lever is normal
For the older stuff. Mine is so old just has gravity tension. The new higher end lathes are all electronic speed control. I just realized I don’t have pics of any of the wine stoppers i made, but they are nothing special. I just google “burl wood bottle stoppers” and basically steal ideas i like from pics and just kind of eyeball them to look similar to the pics lol. I’ll try to take a pic of the lathe and tools tomorrow. Its up on a shelf in the garage amd its cold out.
2 time survivor of The Great Misc Outages of 2022

Survivor of PHP/API Outage of Feb 2023
post 1677078663 02-12-2023, 07:07 PM
-
#18
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397
We're in the midst of cyclone Gabriel so the schools are closed. I took the boys to machinery house to try and teach them something + pick up some chisels.

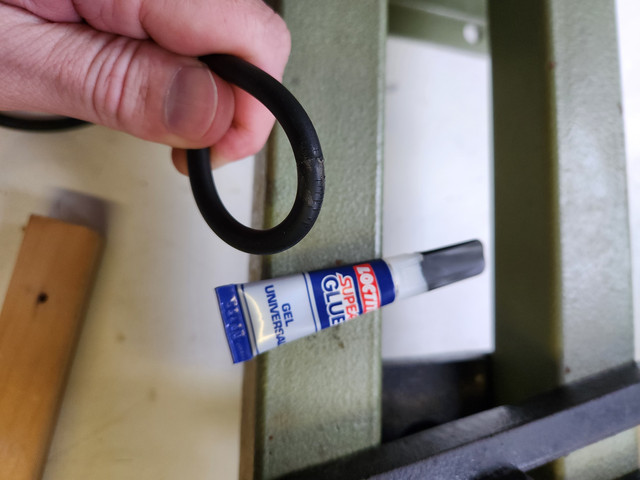

They didn't have a replacement belt so I glued the old one back together for lols




It's working for now but I plan to try and find an O ring in a similar size from a hydraulics shop

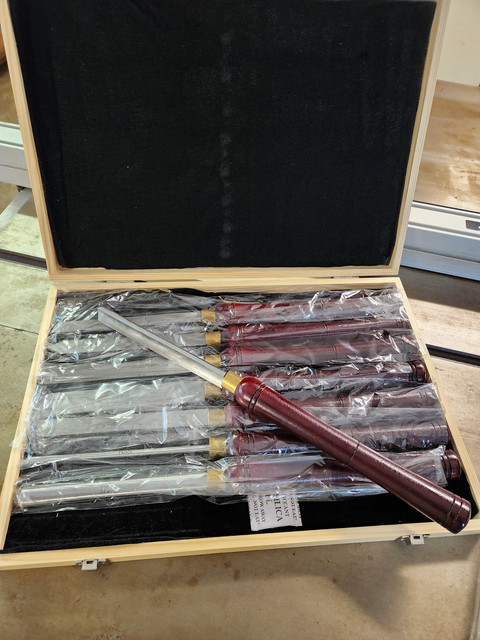

Here's the chisel set




Bonus pic of young buck getting 'sucked up' by the fumes extractor

Damn
post 1677078833 02-12-2023, 07:09 PM
-
#19
  1. Destor
  2. Registered User
  1. Destor
  2. Registered User
  3. Join Date: Apr 2012
  4. Location: Alberta, Canada
  5. Age: 41
  6. Posts: 43,481
  7. Rep Power: 254906
Friggin cool man mirin
post 1677079083 02-12-2023, 07:14 PM
-
#20
  1. MajorTendonitis
  1. MajorTendonitis
  3. Join Date: Jan 2016
  4. Location: East Kootenays BC
  5. Age: 65
  6. Height: 5'8"
  7. Weight: 241 lbs
  8. Posts: 41,983
  9. Subscribers: 8
  10. Rep Power: 715365
Congrats OP, good find . I’d love to have a lathe but sis I’m out of room for any more toys.
Used a metal lathe and a wood lathe back in high school , but that’s about it
Back with my Fam
post 1677079333 02-12-2023, 07:16 PM
-
#21
  1. RICHSTRONG
  2. Pa BITCHES
  1. RICHSTRONG
  2. Pa BITCHES
  3. Join Date: Mar 2012
  4. Location: United States
  5. Height: 6'2"
  6. Weight: 350 lbs
  7. Posts: 85,300
  8. Subscribers: 14
  9. Rep Power: 1662183
Loved working on a lathe in hs shop. That's sweet
See monster0ultra's sig
post 1677079603 02-12-2023, 07:22 PM
-
#22
  1. swoleyo
  2. Registered User
  1. swoleyo
  2. Registered User
  3. Join Date: May 2009
  4. Location: Chicago, Illinois, United States
  5. Age: 42
  6. Posts: 10,948
  7. Rep Power: 48507
Originally Posted By Paul
damn, that's pretty impressive, wood pay you to make a piece for me. srs.
I have a large glass dinning room table top that my mom gave us and has some great etch work done within it, unfortunately, I do not have a base..was thinking of something like this...



or..






but everything I have found is too small for the glass piece I have
I actually have a side business where I make these. I can send you photos if you PM me.
Mod neg Cry-Baby Crew
NEG ONLYFANS THREADS CREW
EPSTEIN DIDN'T KILL HIMSELF CREW
RAW DOG CREW - PRESIDENT OF THE COMPANY
post 1677080703 02-12-2023, 07:40 PM
-
#23
  1. Adam16121
  2. Registered User
  1. Adam16121
  2. Registered User
  3. Join Date: Apr 2017
  4. Age: 41
  5. Posts: 20,009
  6. Rep Power: 314711
Look out for moisture in whatever wood you procure. It can wreck your end result. Getting a good supplier and running a few tests can save you weeks of labor.
post 1677082083 02-12-2023, 07:54 PM
-
#24
  1. Kev1972
  2. Registered User
  1. Kev1972
  2. Registered User
  3. Join Date: Jun 2013
  4. Location: Big Arm, Montana, United States
  5. Posts: 49,924
  6. Rep Power: 287644
In before OP is on a funny youtube video



Hope you keep all your extremities.
Motorcycle crew
Army veteran crew
One Meal a day crew
post 1677144353 02-13-2023, 06:23 PM
-
#25
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397
Originally Posted By Destor⏩
Friggin cool man mirin
Sweet!
Originally Posted By MajorTendonitis⏩
Congrats OP, good find . I’d love to have a lathe but sis I’m out of room for any more toys.
Used a metal lathe and a wood lathe  back in high school , but that’s about it
Originally Posted By RICHSTRONG⏩
Loved working on a lathe in hs shop. That's sweet
Mirin, I never did wood shop in high school. I rememeber I got top of the school (like 94%) in graphic design in 4th form without trying and then I moved onto agriculture. Maybe I missed my calling.
Originally Posted By swoleyo⏩
I actually have a side business where I make these. I can send you photos if you PM me.
Pics pls
Originally Posted By Adam16121⏩
Look out for moisture in whatever wood you procure. It can wreck your end result. Getting a good supplier and running a few tests can save you weeks of labor.
Good thought. I use 100% recycled wood so most of it is 100 yo rimu tree, cut down 100 years ago and its been in a house this whole time lol. It's really hard wood, and usually clears with no knots
Originally Posted By Kev1972⏩
In before OP is on a funny youtube video

Hope you keep all your extremities.
Yeah, theres no way I'm watching that boyo lol
Damn
post 1677144853 02-13-2023, 06:29 PM
-
#26
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397
Here's the test piece locked in




It was pretty fun. The work piece kept stopping, at first I thought the belt was slipping but the motor was stopping too. I don't think I was using too much force, maybe my chisels could use a sharpen.

This is going to be a butt plug for Getter_done for valentines day. Nobody tell him I don't want to ruin the suprise


Damn
post 1677145553 02-13-2023, 06:41 PM
-
#27
  1. desslok
  2. Super Spreader
  1. desslok
  2. Super Spreader
  3. Join Date: Apr 2010
  4. Posts: 42,315
  5. Rep Power: 243654
Originally Posted By Jandels⏩
Here's the test piece locked in




It was pretty fun. The work piece kept stopping, at first I thought the belt was slipping but the motor was stopping too. I don't think I was using too much force, maybe my chisels could use a sharpen.

This is going to be a butt plug for Getter_done for valentines day. Nobody tell him I don't want to ruin the suprise


Damn


Pro tip: to tell if its round yet while its spinning, gently and carefully rest one of your gouges on top of the piece. If it bounces its still square, if it stays smooth then its round
2 time survivor of The Great Misc Outages of 2022

Survivor of PHP/API Outage of Feb 2023
post 1677145693 02-13-2023, 06:45 PM
-
#28
  1. Jandels
  2. Yep
  1. Jandels
  2. Yep
  3. Join Date: Oct 2020
  4. Posts: 23,932
  5. Subscribers: 2
  6. Rep Power: 112397
Originally Posted By desslok⏩
Damn


Pro tip: to tell if its round yet while its spinning, gently and carefully rest one of your gouges on top of the piece. If it bounces its still square, if it stays smooth then its round
Great tip, thanks man. I'm playing around with the different tools to see what each of them do. Will probably watch some more youtube videos too.
Damn
post 1677146333 02-13-2023, 06:57 PM
-
#29
  1. NitrogenWidget
  1. NitrogenWidget
  3. Join Date: Dec 2010
  4. Location: United States
  5. Posts: 43,261
  6. Subscribers: 1
  7. Rep Power: 349299
well gee golly.
i'd never heard of this gluing of round belts before for a lathe.

https://www.homemodelenginemachinist...belting.32827/
post 1677146763 02-13-2023, 07:04 PM
-
#30
  1. RICHSTRONG
  2. Pa BITCHES
  1. RICHSTRONG
  2. Pa BITCHES
  3. Join Date: Mar 2012
  4. Location: United States
  5. Height: 6'2"
  6. Weight: 350 lbs
  7. Posts: 85,300
  8. Subscribers: 14
  9. Rep Power: 1662183
Too bad, if u lived nearby I could get you any piece of hardwood around here for nothing. Cherry, oak, poplar, birch,
See monster0ultra's sig
  1. Page 1 of 2
  2. 1
  3. 2
  5. Last
Quick Navigation Top Misc
Bookmarks
Digg.com
Digg
del.icio.us
del.icio.us
Stumbleupon.com
StumbleUpon
Google.com
Google
Facebook.com
Facebook
Posting Permissions
  1. You may not post new threads
  2. You may not post replies
  3. You may not post attachments
  4. You may not edit your posts
